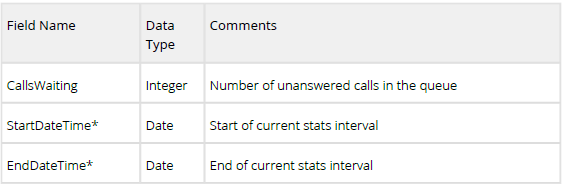

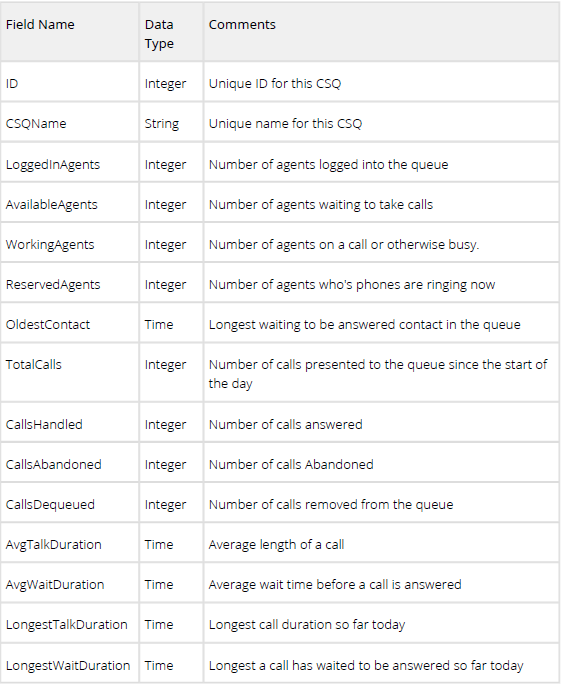

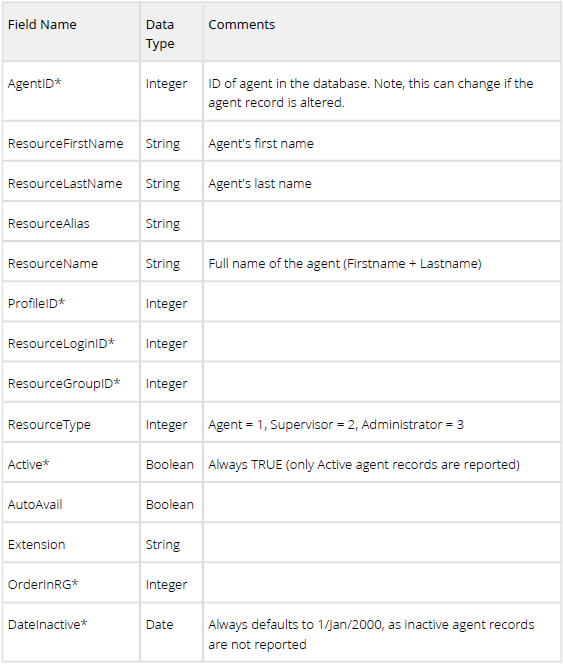

--- title: Cisco UCCX Metric List description: Cisco UCCX Metric List --- [Skip to content](https://kb.optymyse.com/cisco-uccx-metric-list#main-content) [![optymyse-pos](https://kb.optymyse.com/hubfs/optymyse-pos.svg)](https://kb.optymyse.com/?hsLang=en) Open main navigation Close main navigation - [Contact us](https://www.optymyse.com/) [Contact us](https://www.optymyse.com/) How can we help you? - There are no suggestions because the search field is empty. 1. [Optymyse](https://kb.optymyse.com/?hsLang=en) 2. [Support](https://kb.optymyse.com/support?hsLang=en) 3. [Connector Metrics](https://kb.optymyse.com/support?hsLang=en#connector-metrics) October 13, 2025 # Cisco UCCX Metric List The Cisco UCCX connector ships with two feeds configured by default: **CSQ Feed and Agents Feed.** The CSQ feed is a straight query on the UCCX database, retrieving data from the rtCSQsSummary table. If you are familiar with the UCCX database, you can adjust this feed to report the fields you wish to report on, however, it must be possible to do this with a single query, and the field definitions must be updated to match. The second feed, the UCCX agent feed, summarises and collates data from a number of sources within the UCCX database. The output fields cannot be altered. Agent data is refreshed from the database every 5 seconds, updates are output every second. To access the Informix server, the UCCX documentation ([https://www.cisco.com/c/en/us/td/](https://www.cisco.com/c/en/us/td/%20docs/voice_ip_comm/cust_contact/contact_center/crs/express_11_5/configuration/guide/%20RCCT_BK_P8892FBB_00_port-utilization-guide-uccx-solutions/RCCT_BK_P8892FBB_00_portutilization-%20guide-uccx-solutions_chapter_00.html) [docs/voice\_ip\_comm/cust\_contact/contact\_center/crs/express\_11\_5/configuration/guide/](https://www.cisco.com/c/en/us/td/%20docs/voice_ip_comm/cust_contact/contact_center/crs/express_11_5/configuration/guide/%20RCCT_BK_P8892FBB_00_port-utilization-guide-uccx-solutions/RCCT_BK_P8892FBB_00_portutilization-%20guide-uccx-solutions_chapter_00.html) [RCCT\_BK\_P8892FBB\_00\_port-utilization-guide-uccx-solutions/RCCT\_BK\_P8892FBB\_00\_portutilization-](https://www.cisco.com/c/en/us/td/%20docs/voice_ip_comm/cust_contact/contact_center/crs/express_11_5/configuration/guide/%20RCCT_BK_P8892FBB_00_port-utilization-guide-uccx-solutions/RCCT_BK_P8892FBB_00_portutilization-%20guide-uccx-solutions_chapter_00.html) [guide-uccx-solutions\_chapter\_00.html](https://www.cisco.com/c/en/us/td/%20docs/voice_ip_comm/cust_contact/contact_center/crs/express_11_5/configuration/guide/%20RCCT_BK_P8892FBB_00_port-utilization-guide-uccx-solutions/RCCT_BK_P8892FBB_00_portutilization-%20guide-uccx-solutions_chapter_00.html)) states, by default, a connection needs to be allowed via TCP on port 1504. **CSQ Feed** This feed contains details about all CSQs available within UCCX, which have their realtime reporting option switched on. ![mceclip0.png](https://zammad.optymyse.com/api/v1/attachments/6762) ![mceclip1.png](https://zammad.optymyse.com/api/v1/attachments/6763) **Note:** Asterisked values are available for the sake of completeness, they are not likely to be useful on a wallboard. **Agent Feed** The following statistics are gathered and maintained about agent activity within UCCX. These stats are refreshed approx. every 5 seconds. ![mceclip2.png](https://zammad.optymyse.com/api/v1/attachments/6764) ![mceclip3.png](https://zammad.optymyse.com/api/v1/attachments/6765) **Note:** Asterisked values are available for the sake of completeness, they are not likely to be useful on a wallboard. [Cisco UCCX Connector - Default Feeds-v4-20170926\_1704.pdf](https://kb.optymyse.com/hubfs/Knowledge%20Base/Cisco%20UCCX%20Connector%20-%20Default%20Feeds-v4-20170926_1704.pdf?hsLang=en) - [Using Optymyse](https://kb.optymyse.com/using-optymyse?hsLang=en#main-content) - [Getting Started](https://kb.optymyse.com/using-optymyse?hsLang=en#getting-started) - [Optymyse Display and Agile](https://kb.optymyse.com/using-optymyse?hsLang=en#optymyse-display-and-agile) - [Installation](https://kb.optymyse.com/using-optymyse?hsLang=en#installation) - [Permissions](https://kb.optymyse.com/using-optymyse?hsLang=en#permissions) - [Triggers](https://kb.optymyse.com/using-optymyse?hsLang=en#triggers) - [Optymyse Director - Designer](https://kb.optymyse.com/using-optymyse?hsLang=en#optymyse-director-designer) - [Features](https://kb.optymyse.com/using-optymyse?hsLang=en#features) - [Purchasing](https://kb.optymyse.com/purchasing?hsLang=en#main-content) - [Accounts and Billing](https://kb.optymyse.com/purchasing?hsLang=en#accounts-and-billing) - [Getting Started](https://kb.optymyse.com/purchasing?hsLang=en#getting-started) - [Licensing](https://kb.optymyse.com/purchasing?hsLang=en#licensing) - [System Requirements](https://kb.optymyse.com/purchasing?hsLang=en#system-requirements) - [Installation and Deployment](https://kb.optymyse.com/installation-and-deployment?hsLang=en#main-content) - [Hardware Options](https://kb.optymyse.com/installation-and-deployment?hsLang=en#hardware-options) - [Connector Configuration](https://kb.optymyse.com/installation-and-deployment?hsLang=en#connector-configuration) - [Cloud Installation](https://kb.optymyse.com/installation-and-deployment?hsLang=en#cloud-installation) - [PBX Configuration](https://kb.optymyse.com/installation-and-deployment?hsLang=en#pbx-configuration) - [Local Installation](https://kb.optymyse.com/installation-and-deployment?hsLang=en#local-installation) - [Support](https://kb.optymyse.com/support?hsLang=en#main-content) - [Connector Metrics](https://kb.optymyse.com/support?hsLang=en#connector-metrics) - [Information](https://kb.optymyse.com/support?hsLang=en#information) - [Troubleshooting](https://kb.optymyse.com/troubleshooting?hsLang=en#main-content) - [Connectors](https://kb.optymyse.com/troubleshooting?hsLang=en#connectors) - [General](https://kb.optymyse.com/troubleshooting?hsLang=en#general) - [Optymyse Director Software](https://kb.optymyse.com/troubleshooting?hsLang=en#optymyse-director-software) [mailto:hello@optymyse.com](mailto:hello@optymyse.com) Copyright © 2025 Optymyse Ltd. All Rights Reserved.
